| HP Series PALLET PRESS MACHINES |
 |
For economical and efficient storage or transportation, the finished bags should be pressed and packed properly. Our hydraulic palletizing press is specially designed for packing big-bags on the pallets sized 100cm x 120cm which can be changed upon your request. It is also possible to manufacture a press with an adjustable pallet size 80cm x 120cm & 100cm x 120cm.
To prepare palletized bales, first a wooden pallet is placed on the bottom of the press. Then the bags are properly stacked on the pallet inside the empty cabin. Piston can be activated vertically by pressing a button. Maximum pressing capacity of our standard press is 24 tons. This power can be increased or decreased upon request. During the operation, when it reaches the maximum pressure, the piston automatically stops and locks itself. The whole process can be operated by one operator.

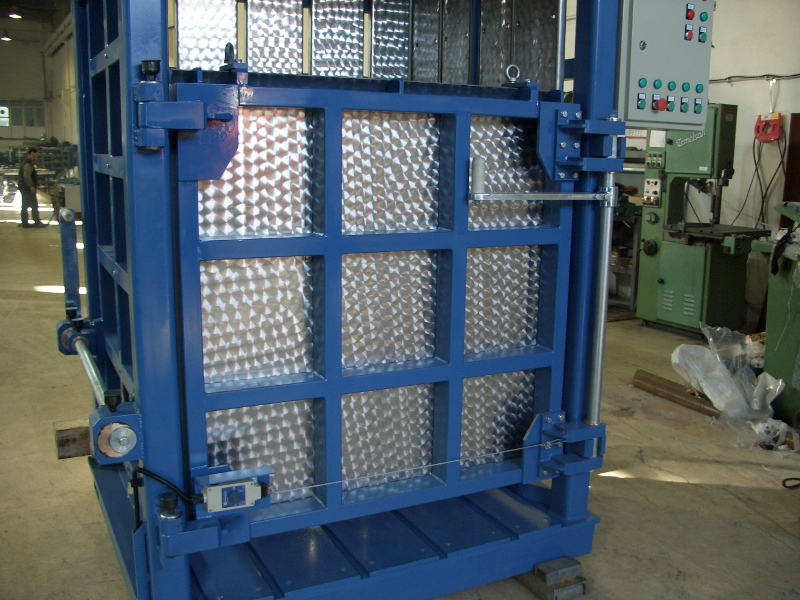

Plastic straps are recommended for binding the finished pallet. With the moveable side door, it makes it easily when pushing the pallets out. Ready pallets are discharged out of the cabin with a discharge piston, without needing a forklift.
HP Series Pallet Press Models:
HP2000-24T (24 tons)
HP2000-40T (40 tons)
HP2000-60T (60 tons)

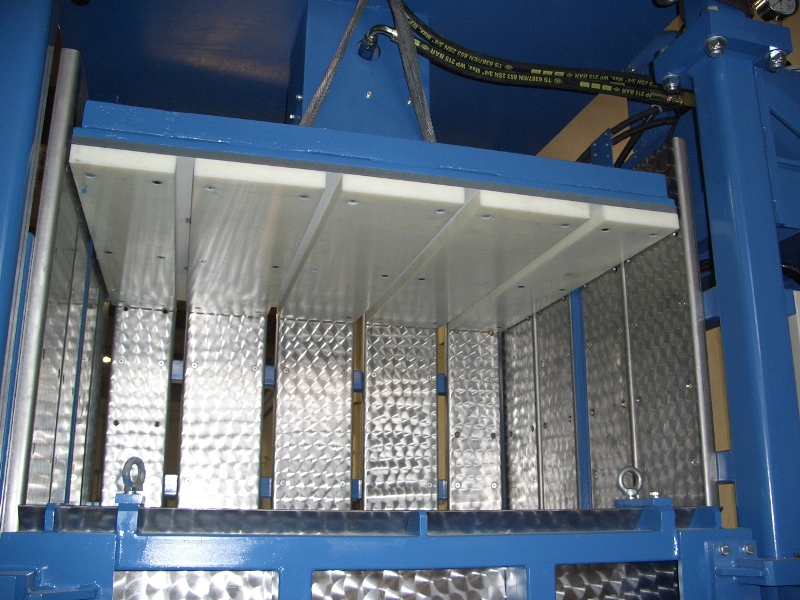

* All models include hydraulic discharge piston, stainless steel inner cabin, one front door, adjustable side wall.
Optionals:
Adjustable Pallet Size
2nd Front Door
|
