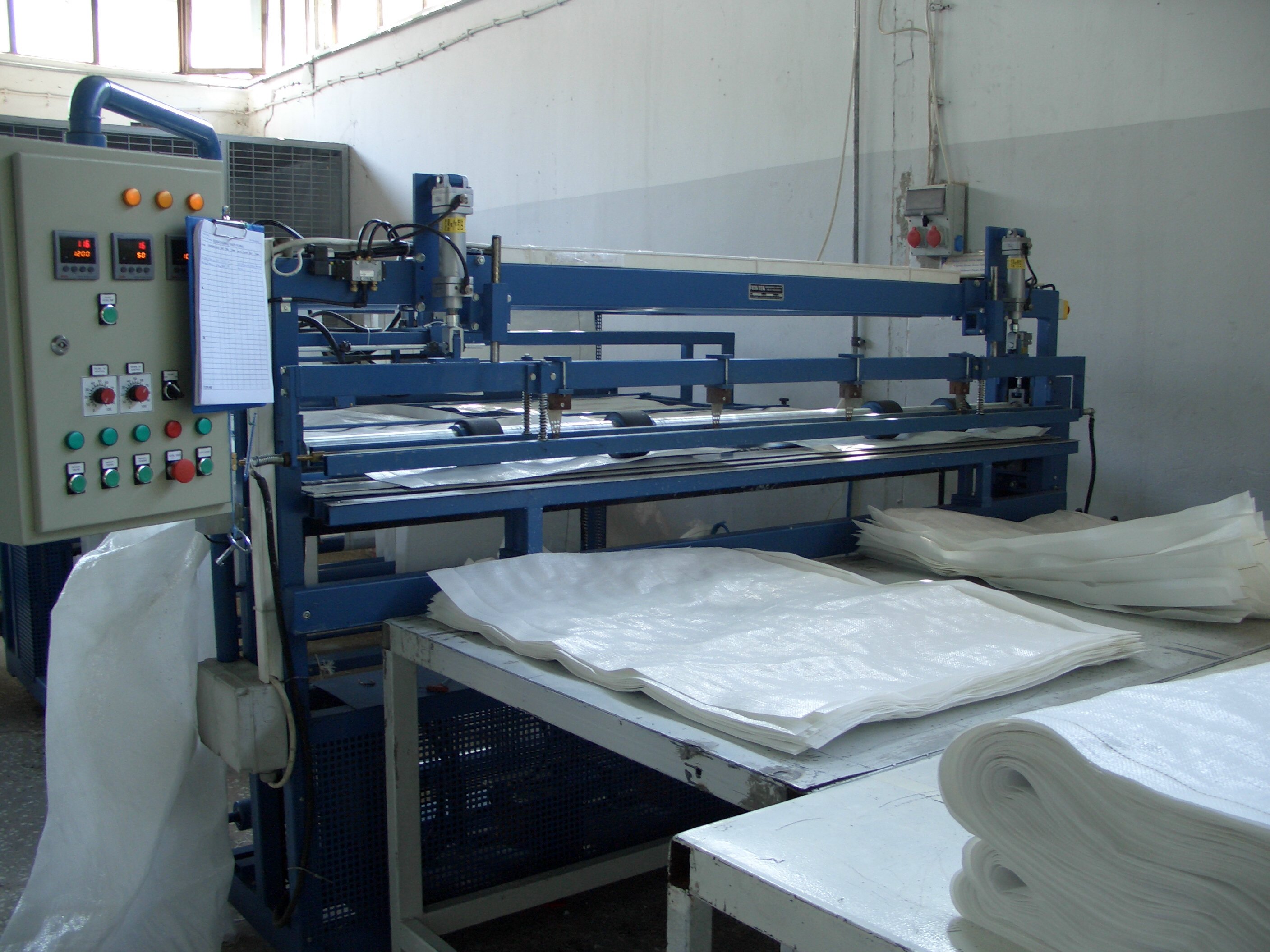

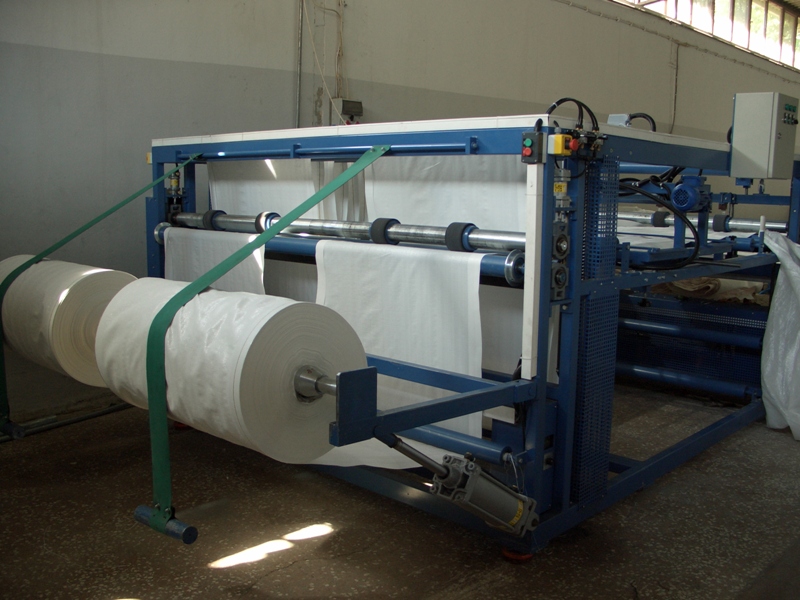

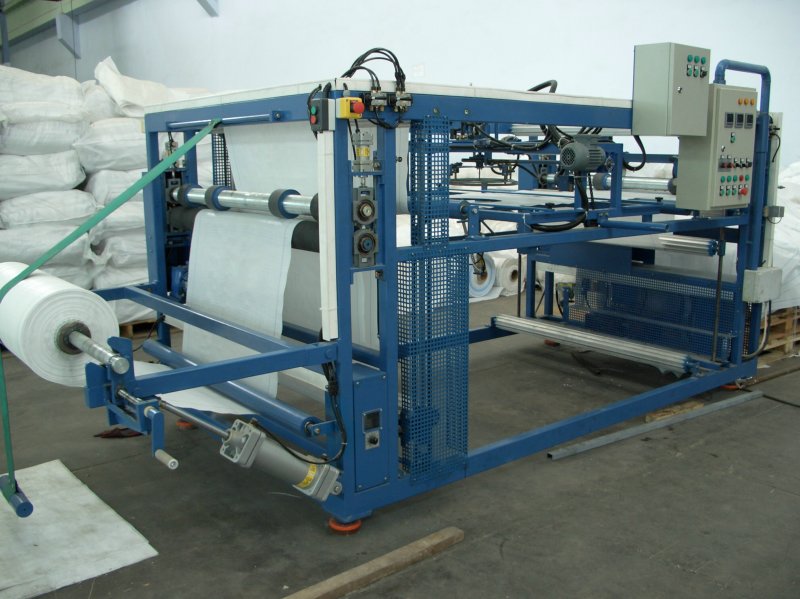

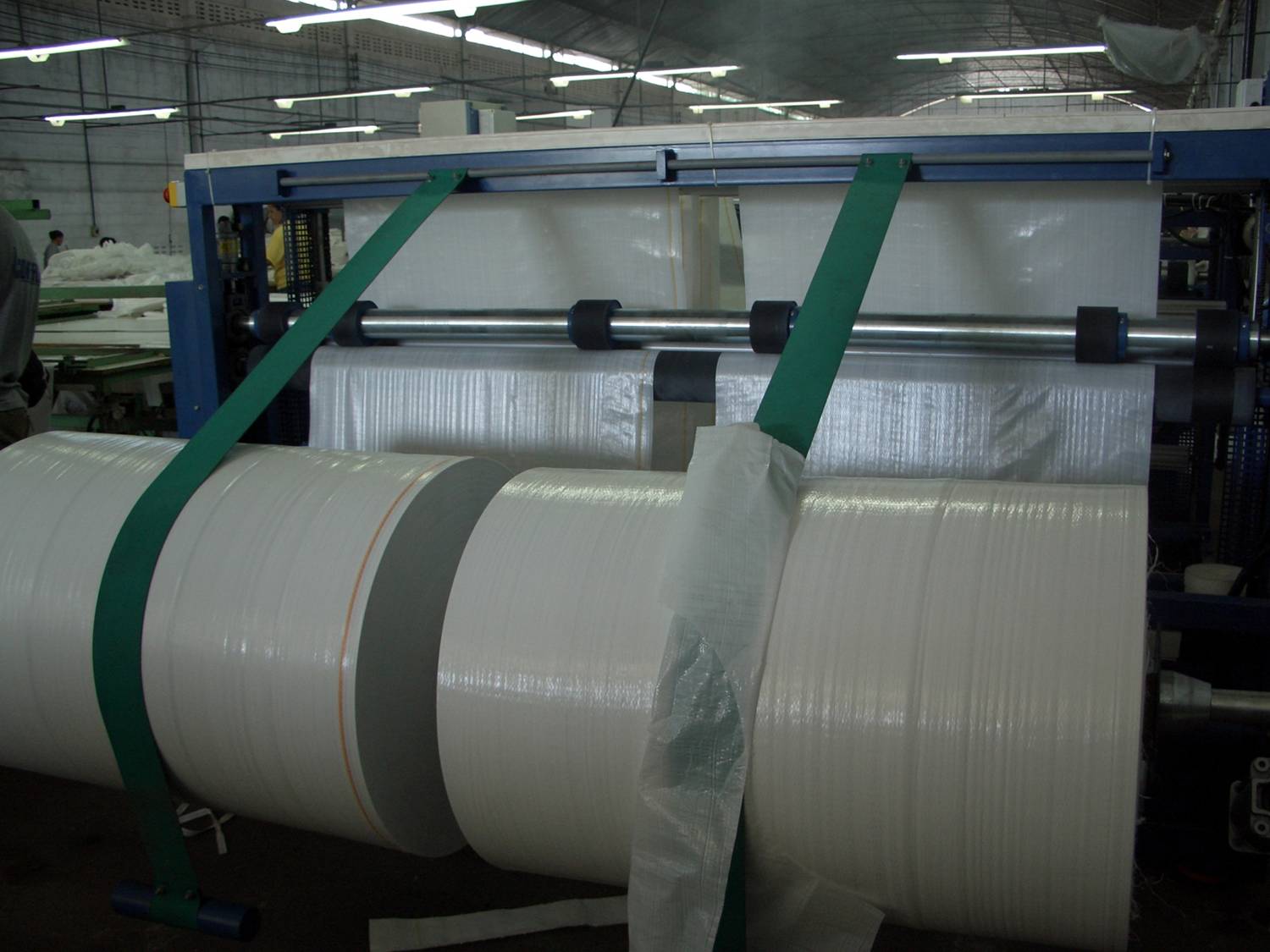

| CH Series FABRIC CUTTING & HOLING MACHINES |
 |

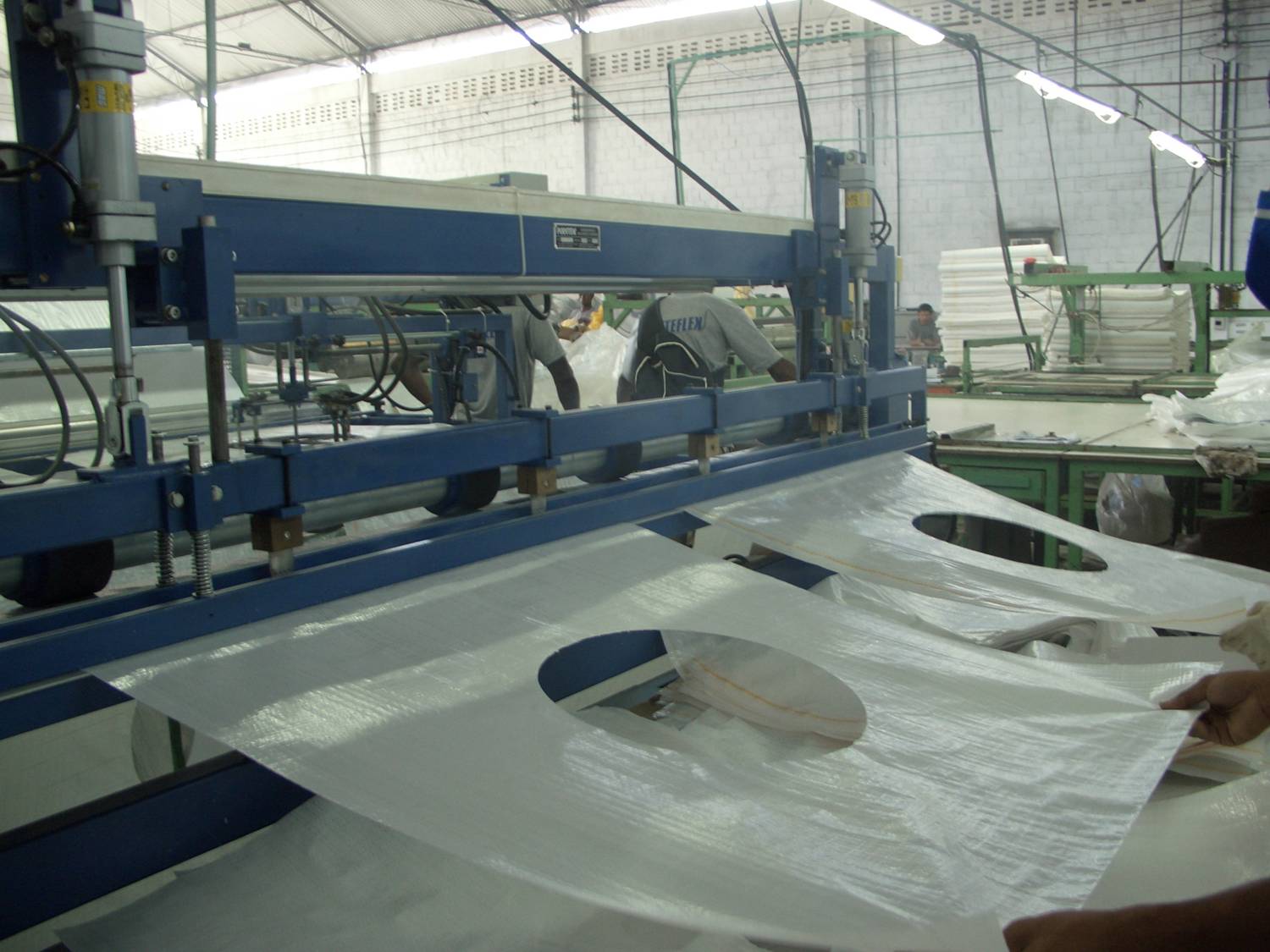

With this well designed, compact machine, you can put polypropylene fabric pieces and a desired size of spout hole. Length and hole cutting devices may also be operated separately.
Before starting the process, an operator should install the right size of hole cutting unit. The exact position of the hole should be adjusted. The centering of the holing unit is done by edge control unit. After setting the desired cut length, the operation runs automatically till it reaches the programmed quantity.

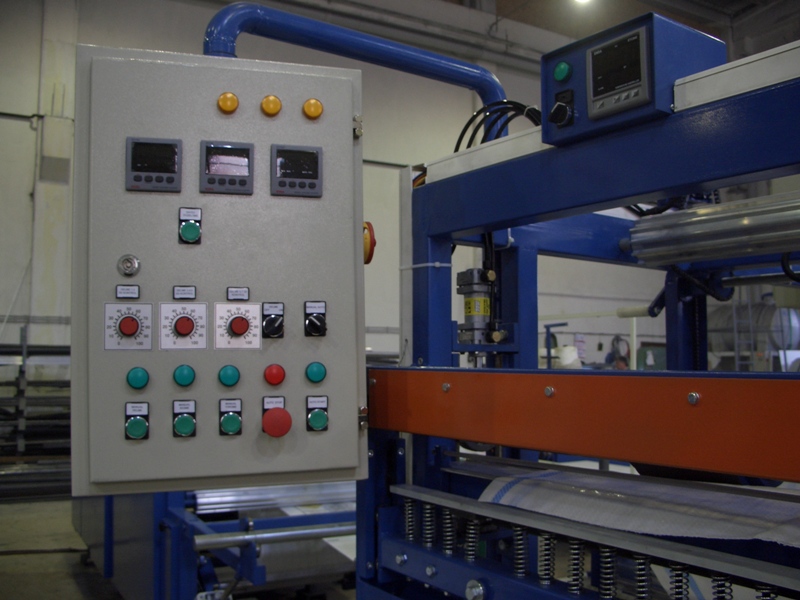

You may need to adjust the timing, duration of the cutting process and the heat temperature according to the thickness of the fabric. The stacking is done manually. An automatic stacking unit is available optionally.
CH Series Cutting & Holing Models:
CH1400 - Max. Fabric Width: 140cm
CH1500 - Max. Fabric Width: 150cm
CH2000 - Max. Fabric Width: 200cm
CH2200 - Max. Fabric Width: 220cm
CH2300 - Max. Fabric Width: 230cm
* All models include; edge control unit, 3 pcs. holing rings, 1 pc. U-cutter, 1 pc. X-cutter, 1 pc. Slit cutter
Optionals:
4 Point Marking System
Double Hole Cutting Unit with Edge Control (for CH2000-2200-2300)
Changable Heat Cutting with Solid Bar vs. Knife for Length Cutting

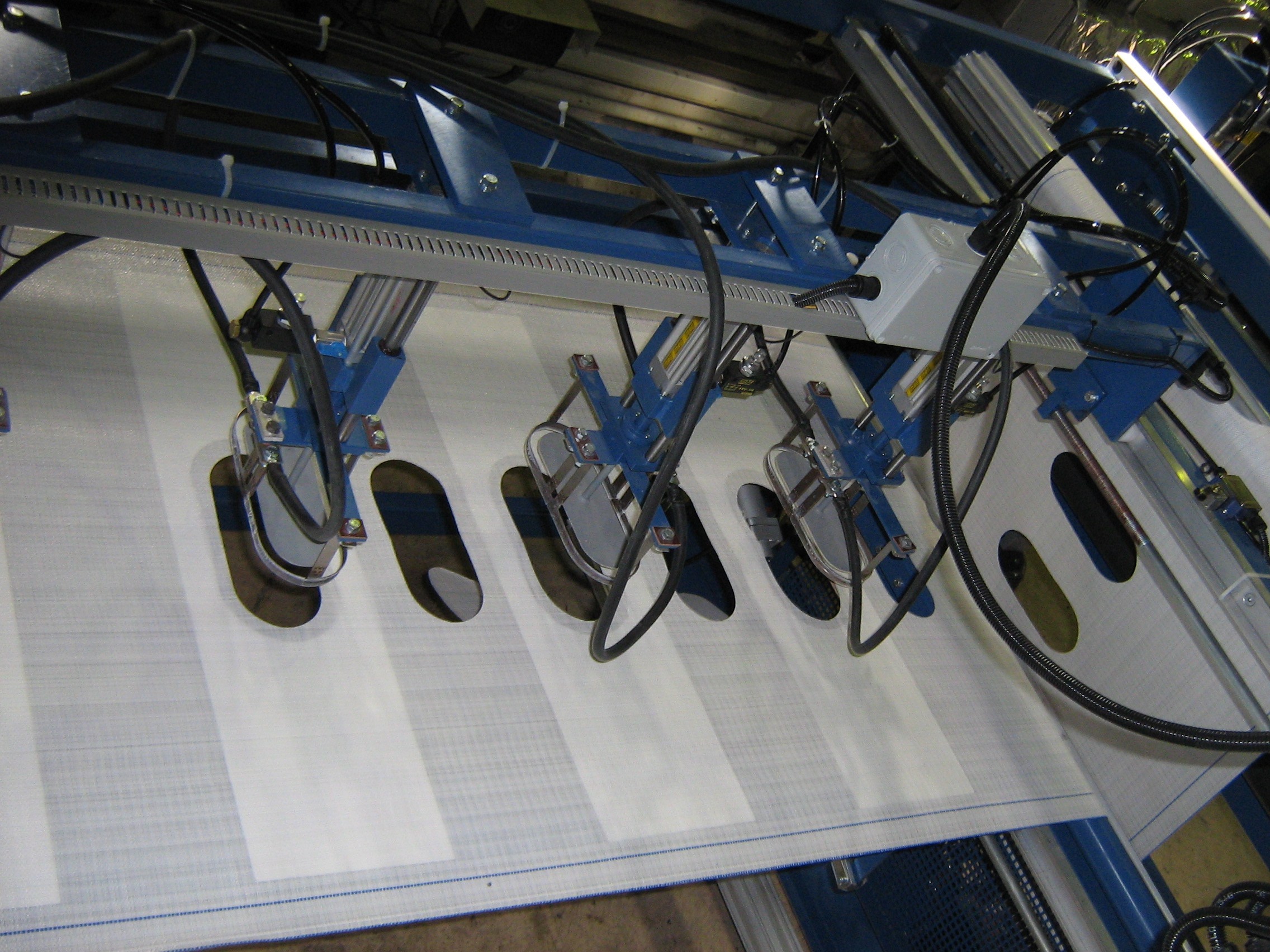

CH-Q Series Baffle Panel Cutting & Holing Models:
CH-Q1400 - Max. Fabric Width: 140cm
CH-Q1500 - Max. Fabric Width: 150cm
CH-Q2000 - Max. Fabric Width: 200cm
CH-Q2200 - Max. Fabric Width: 220cm
* All models include; edge control unit, 7 pcs. holing heads
Optionals:
Changable Heat Cutting with Solid Bar vs. Knife for Length Cutting

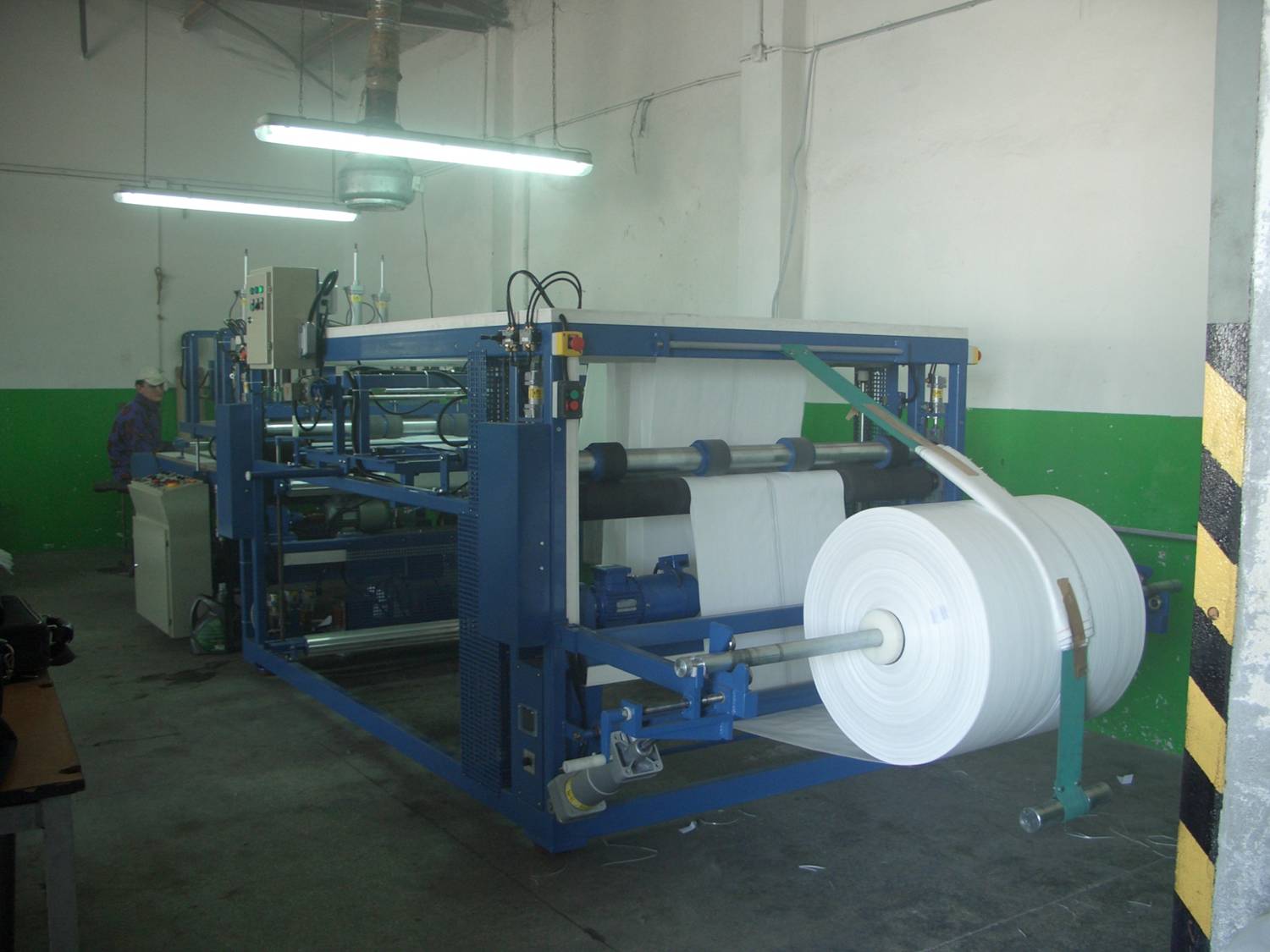

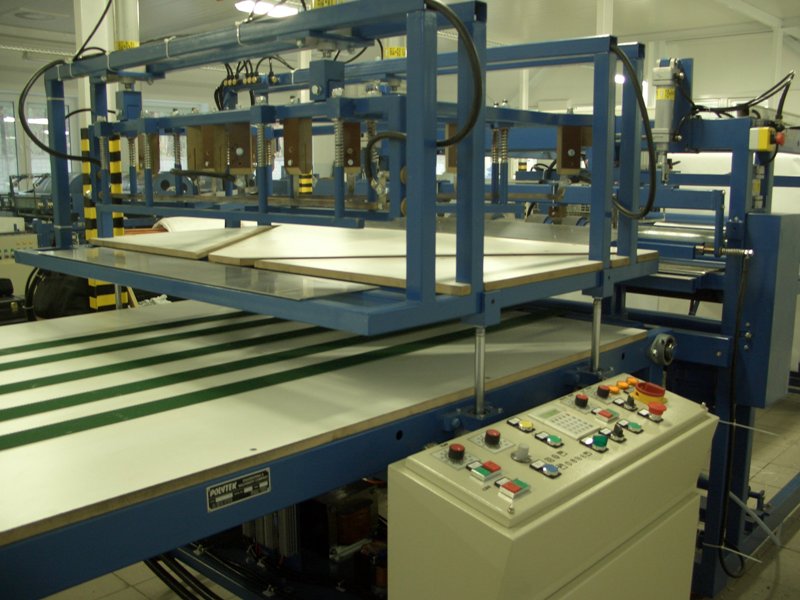

CH-V Conic Cutting & Holing Models:
CH-V1400 - Max. Fabric Width: 140cm
CH-V1500 - Max. Fabric Width: 150cm
CH-V2000 - Max. Fabric Width: 200cm
* All models include; edge control unit, conic cutting unit operated by PLC.
Optionals:
Changable Heat Cutting with Solid Bar vs. Knife for Length Cutting

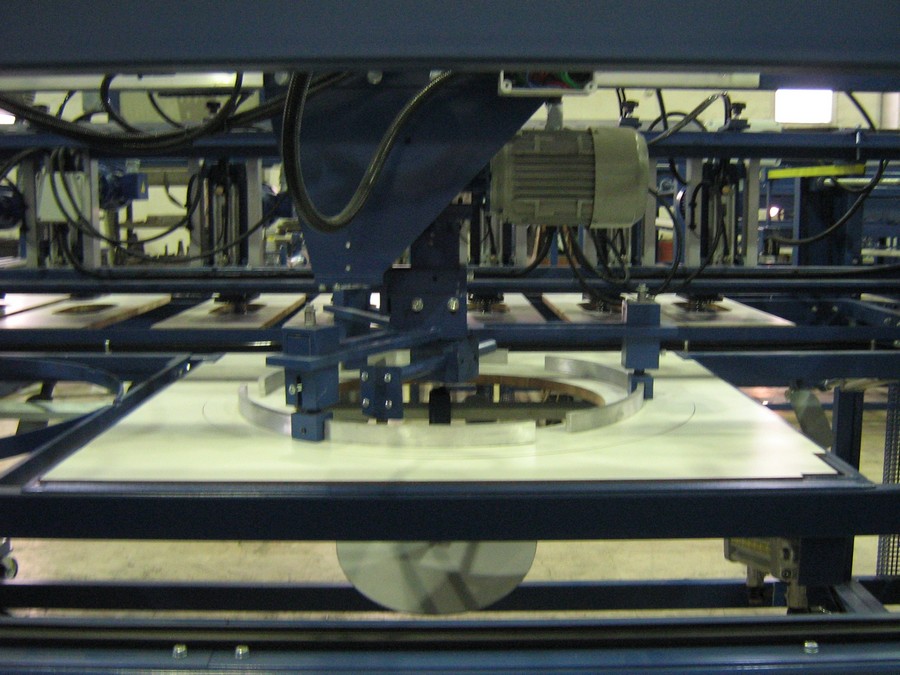

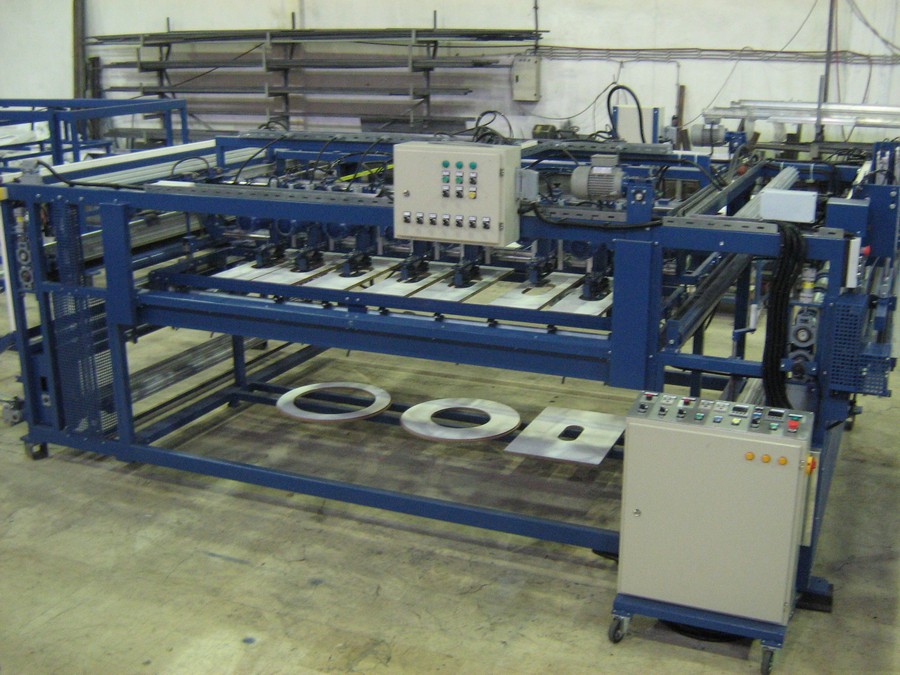

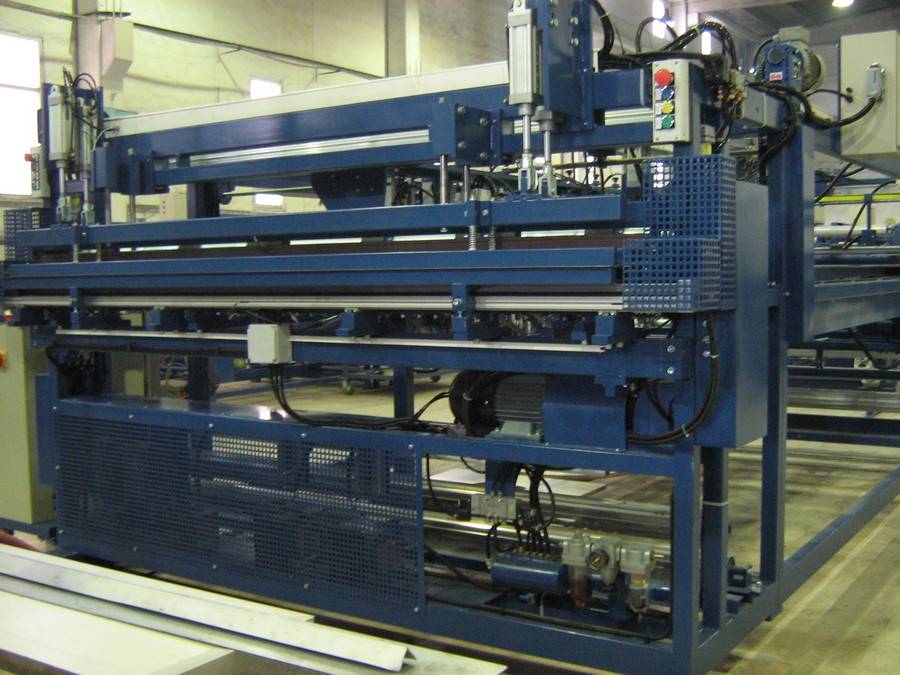

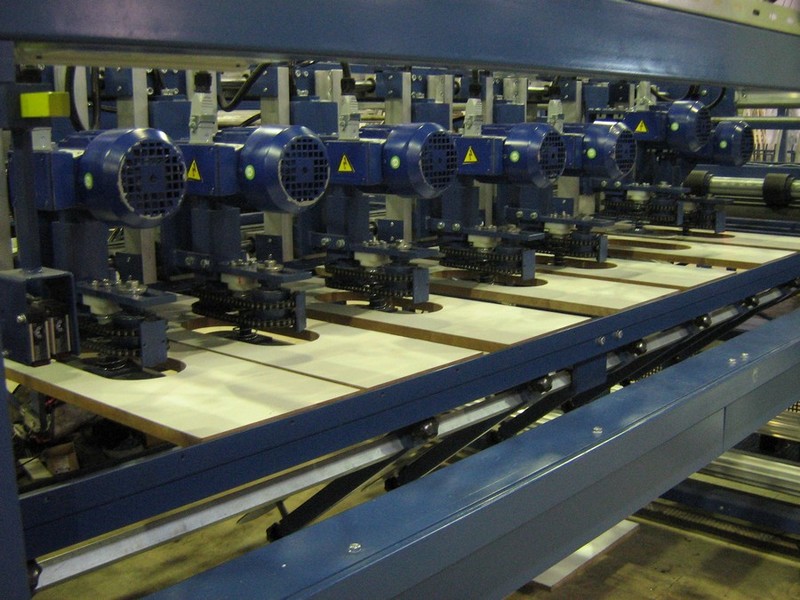

CH-MULTI Functional Cutting & Holing Models:
CH-MULTI2200 - Max. Fabric Width: 220cm
* Both heat & cold cutting for both hole making and length cutting, include edge control unit, 3 pcs. holing rings, 1 pc. U-cutter, 1 pc. X-cutter, 1 pc. Slit cutter, 7 pcs. holing heads
Optionals:
Changable Heat Cutting with Solid Bar vs. Knife for Length Cutting
|
