| BCM Series BELT CUTTING & MARKING MACHINES |
 |

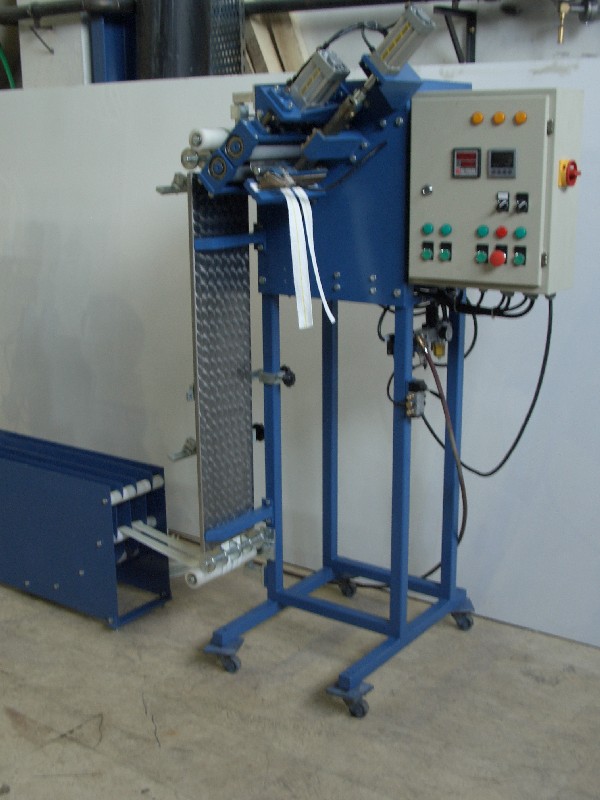

This is a very efficient machine to automatically cut and mark big quantities of belts. It is very easy to operate, you just need to place the webbings on the machine, insert the desired cut length, adjust the
marking points and press the start button.

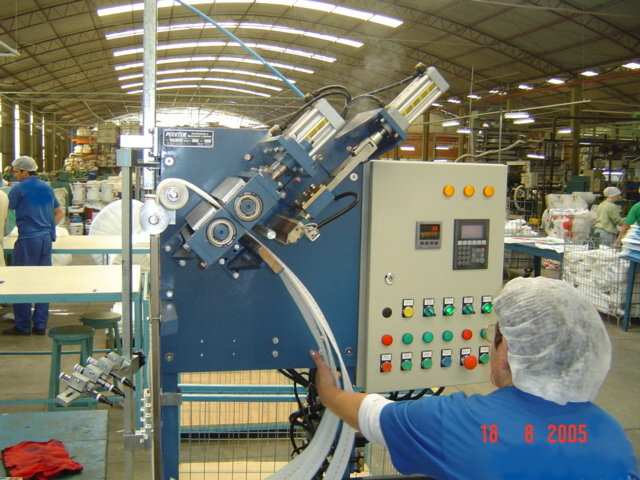

The cutting and marking process can be done automatically. To check the quantity of the cut belts, a counter screen is available on the panel.

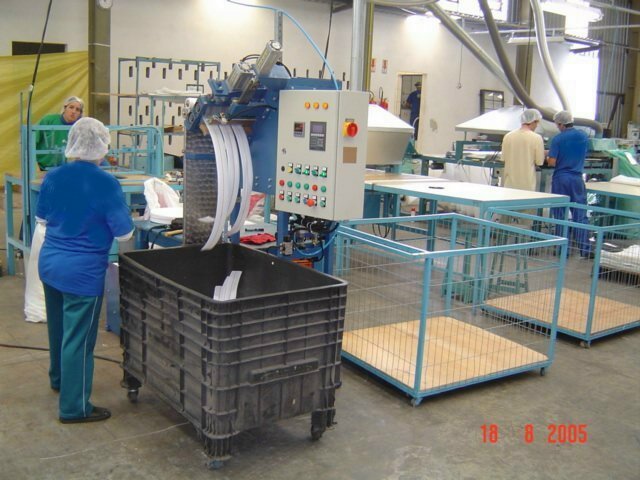

To provide good operating conditions, the material has to be rolled properly. The belt rolls are placed inside the roll container which is placed on the side of the machine. The width of the cutting knife is 230cm which gives you an advantage of cutting 4 belts of 50mm width at a time simultaneously. The machine stops automatically when the preadjusted total quantity is reached.
The working output depends on the cut length. The running speed is 65 meters/minute. Cutting and marking is finished in 2 seconds.
The machine with the PLC gives you the advantage so that; distance between 2 marks more than 100cm and distance between the edge to the first mark smaller than 40cm.
BCM series Belt Cutting & Marking Models:
BCM2400
BCM2400-PLC
|
