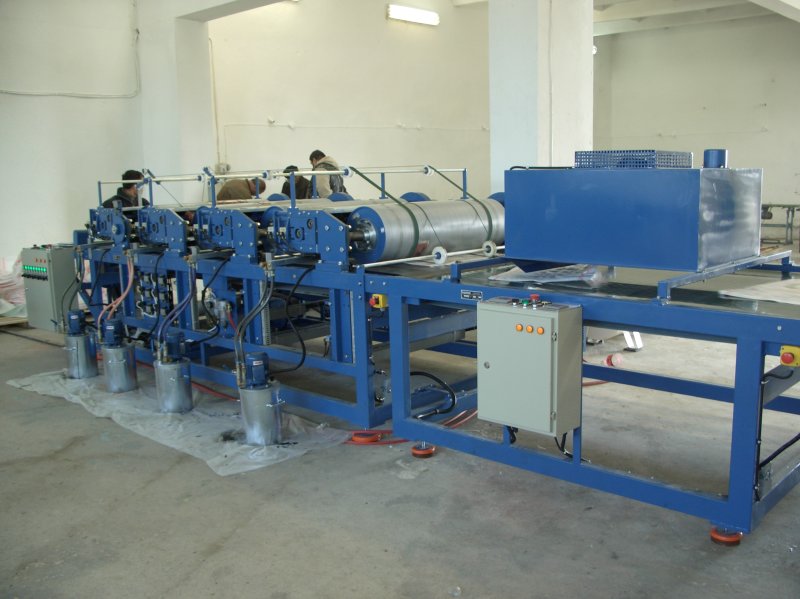

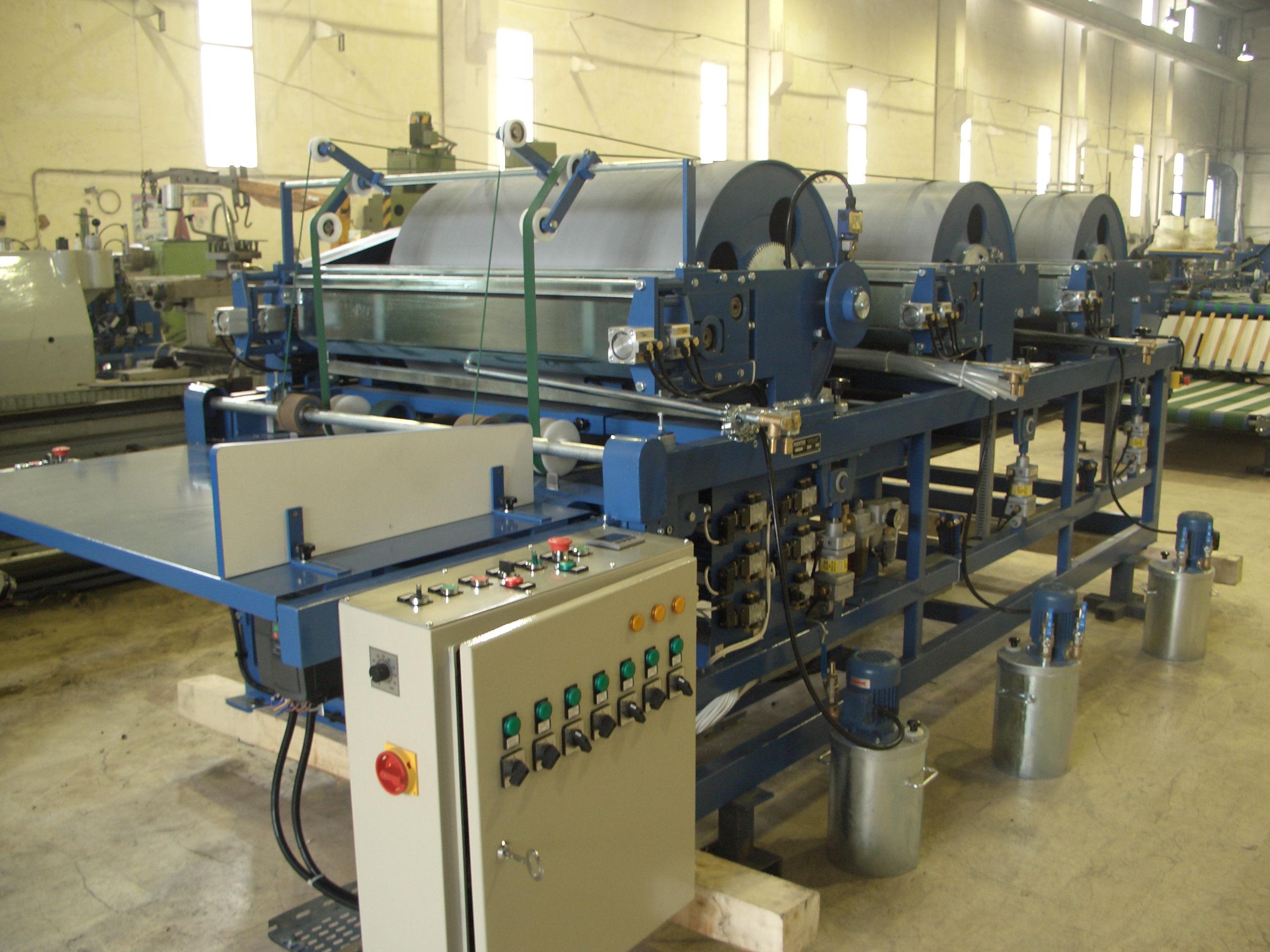

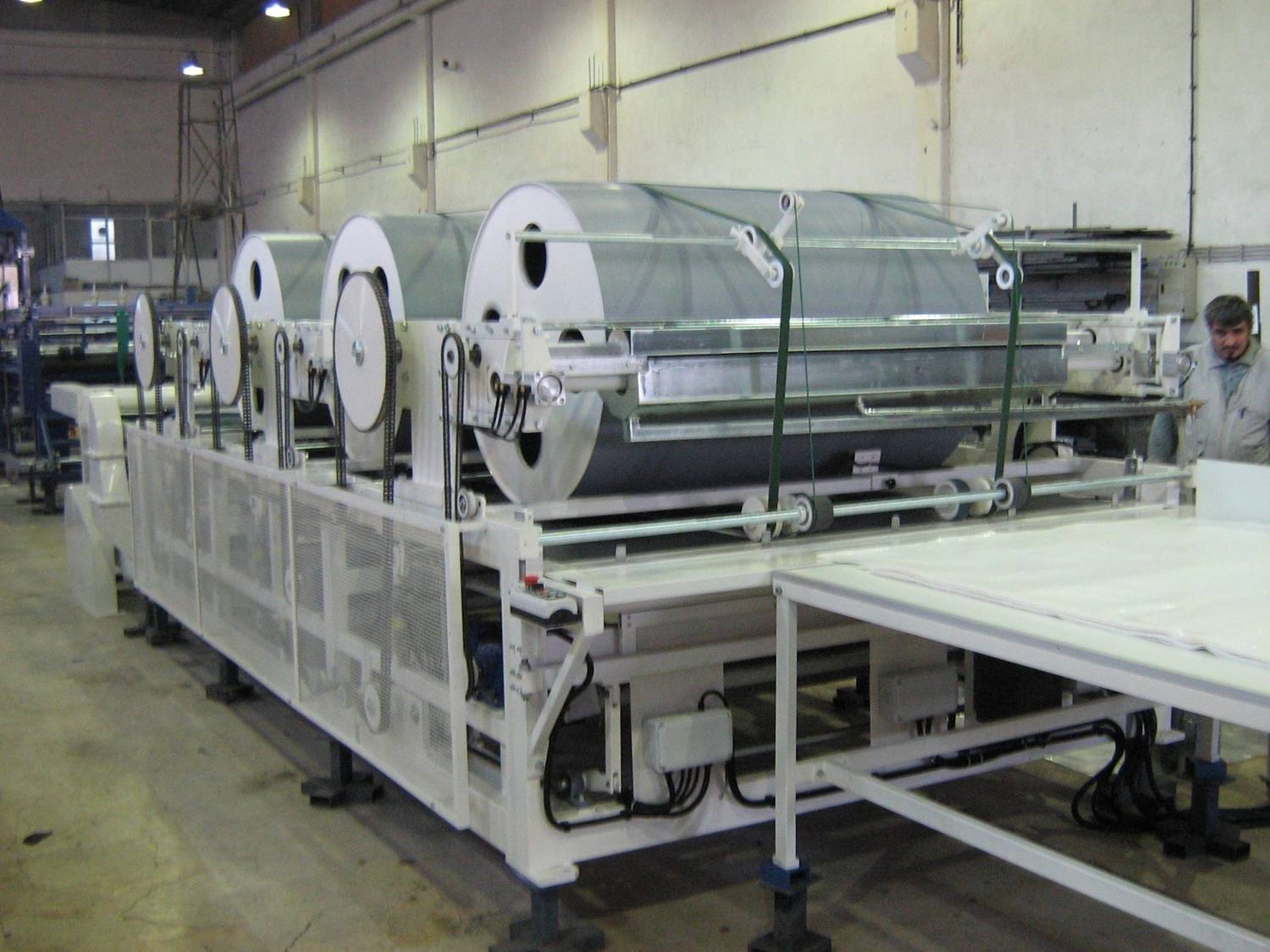

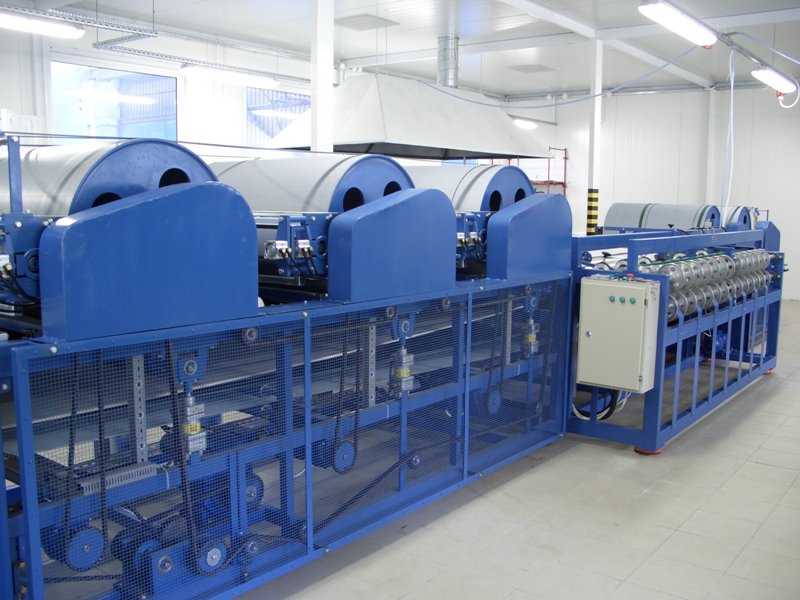

| FP Series PRINTING MACHINES |
 |
Many companies require their logo or company name to be printed on their bags. With our printing machines you may obtain different colors (depending on the printing units), nicely printed material.

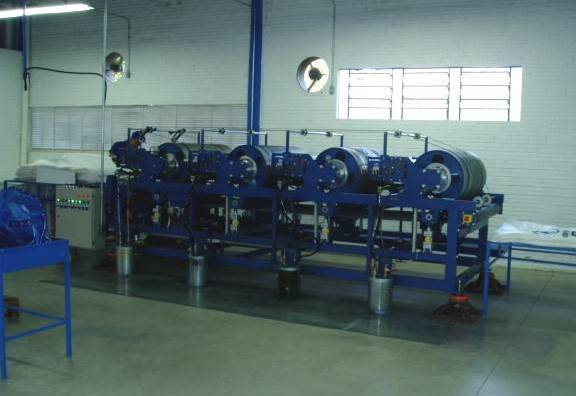

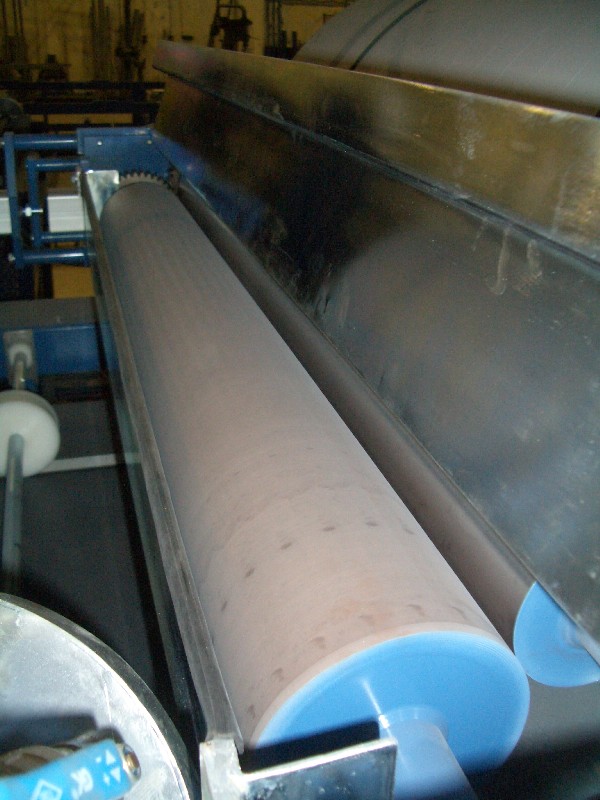

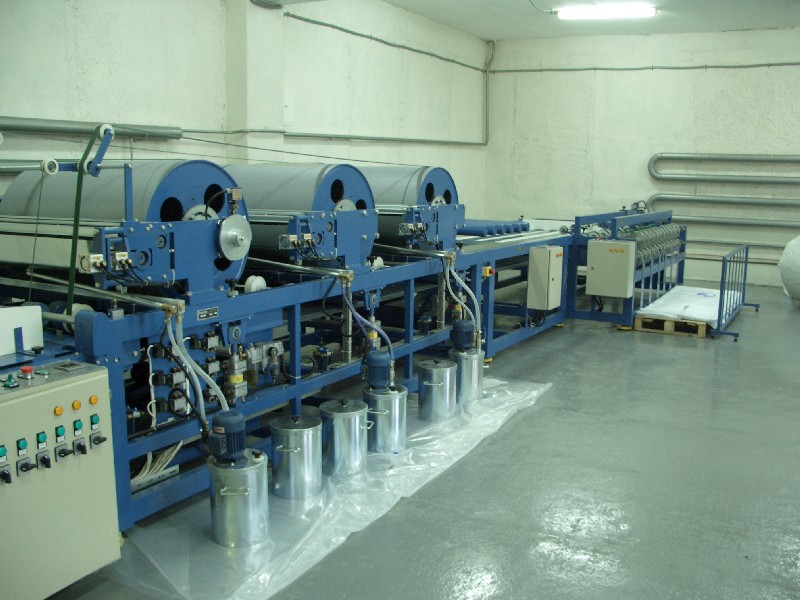

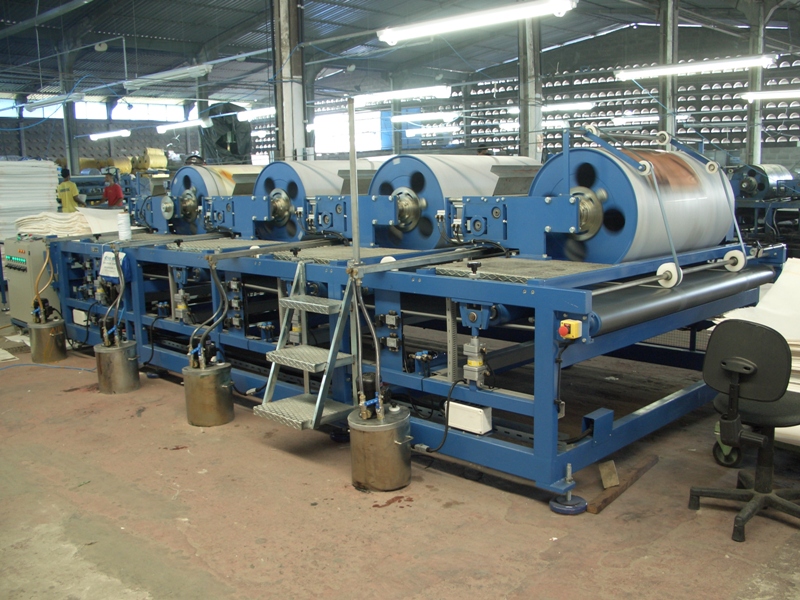

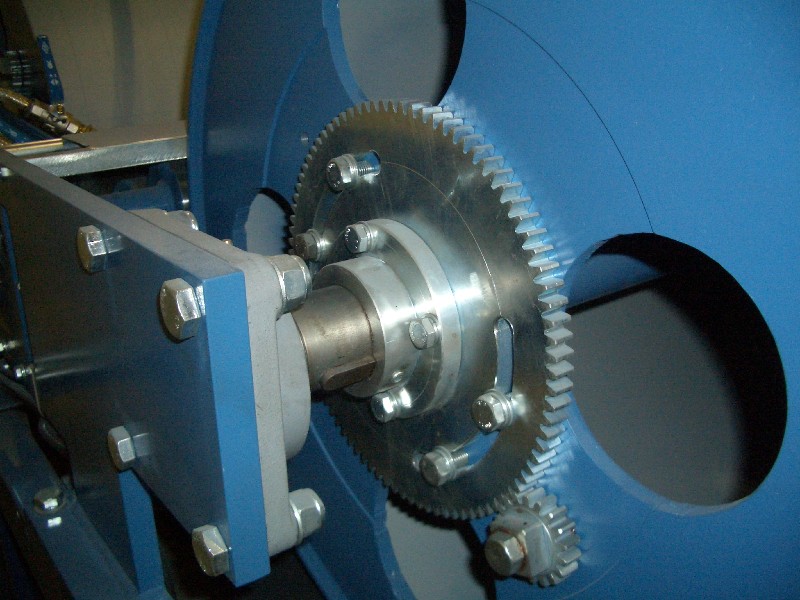

The desired logo and/or text are processed on a printing cliche made from rubber or cyril which is attached to the steel printing rolls. Each printing unit has an ink container on the floor to avoid spilling ink over the conveyor belt during the filling process. The ink is delivered from the containers to the cylinders by a circulating pump which also prevents the ink from drying.

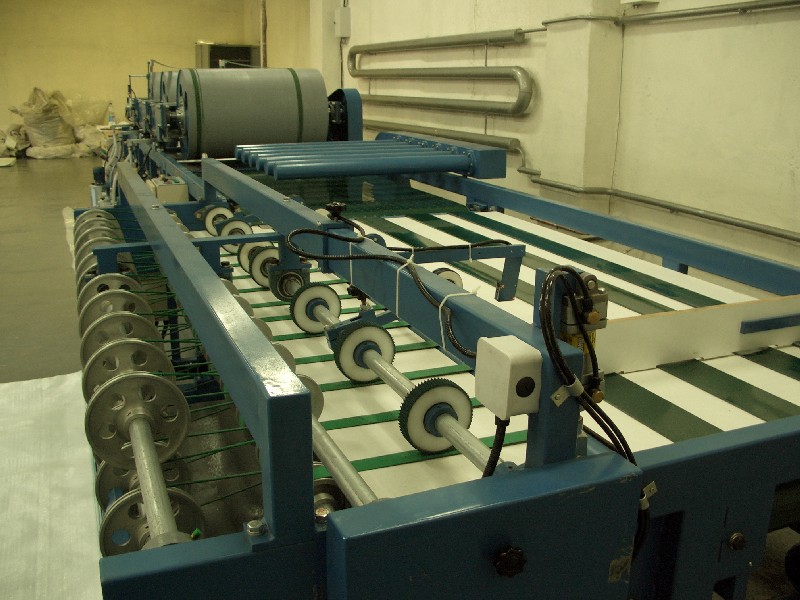

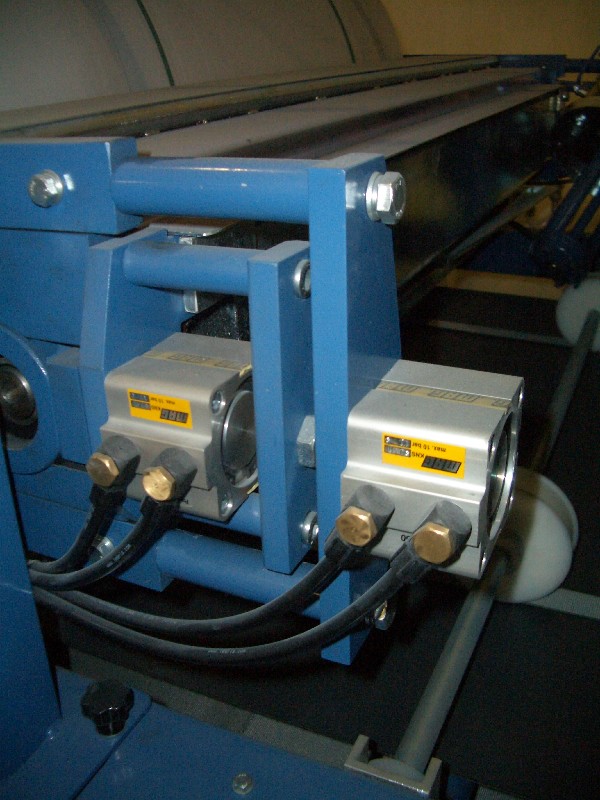

The operator feeds the bags one by one to the machine. The bags are transported on a wide conveyor belt by rollers. When a bag passes underneath the continuously rotating printing drums, a counter cylinder which is activated by a photocell, presses against the conveyor belt, causing the bag contact the inked cliche. By using the adjustable cams, the exact timing of each printing may be calculated to obtain the perfect fit of the proceeding color printing on the bag. By adjusting the speed of the machine according to the operator’s feeding speed, it helps to increase the output of the machine. The stacking is done manually.
For the printing machines we have the following optional equipments;

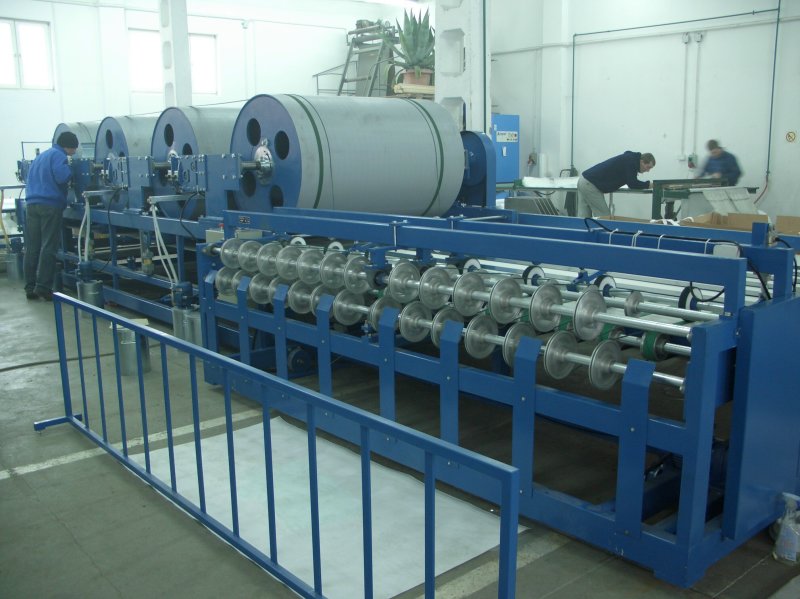

• Automatic Stacking Unit / Take Off Unit: Normally the machine is operated by two operators. When there is stacking unit, you can save the cost of one operator. The unit comes with a counter so that when the printed fabric reaches the desired number, the machine automatically stops.
• Drying Unit: After printing the printed bags are stacked. And if the ink is still wet, the printing can be damaged while stacking. This unit dries the ink before stacking to protect the print quality.
FP Series Printing Machine Models:
FP1250 - Max. Fabric Width x Length: 90 x 125cm (2-3-4-5-6 colors)
FP1600 - Max. Fabric Width x Length: 120 x 160cm (2-3-4-5 colors)
FP2000 - Max. Fabric Width x Length: 120 x 200cm (2-3-4-5 colors)
FP2000N - Max. Fabric Width x Length: 200 x 200cm (2-3-4-5 colors)
FP2200N - Max. Fabric Width x Length: 220 x 200cm (2-3-4-5 colors)
FP3000 - Max. Fabric Width x Length: 120 x 300cm (2-3-4-5 colors)
FP3000N - Max. Fabric Width x Length: 200 x 300cm (2-3-4-5 colors)
Optionals:
Stacking Unit / Take Off Unit
Drying Unit
|
